Lack of protection: The power and heating systems are the core of traditional injection molding machines, but the heating system supports only temperature control and lacks effective hardware protection.

High maintenance cost: The heating system is prone to damage and requires frequent maintenance. For example, heating coils and internal electrical cabinet components need to be replaced frequently, which is complex and time-consuming.

Low production efficiency: Heating failures lead to prolonged downtime and reduce overall production efficiency.

SynMatic solution:

The electro-hydraulic servo drive integrates heating and oil pressure control to simplify the structure.

It also integrates the industry's first intelligent heating protection module to realize automatic protection against open circuits and short circuits. It does not require braking resistors, delivering higher energy-saving performance and efficiency.

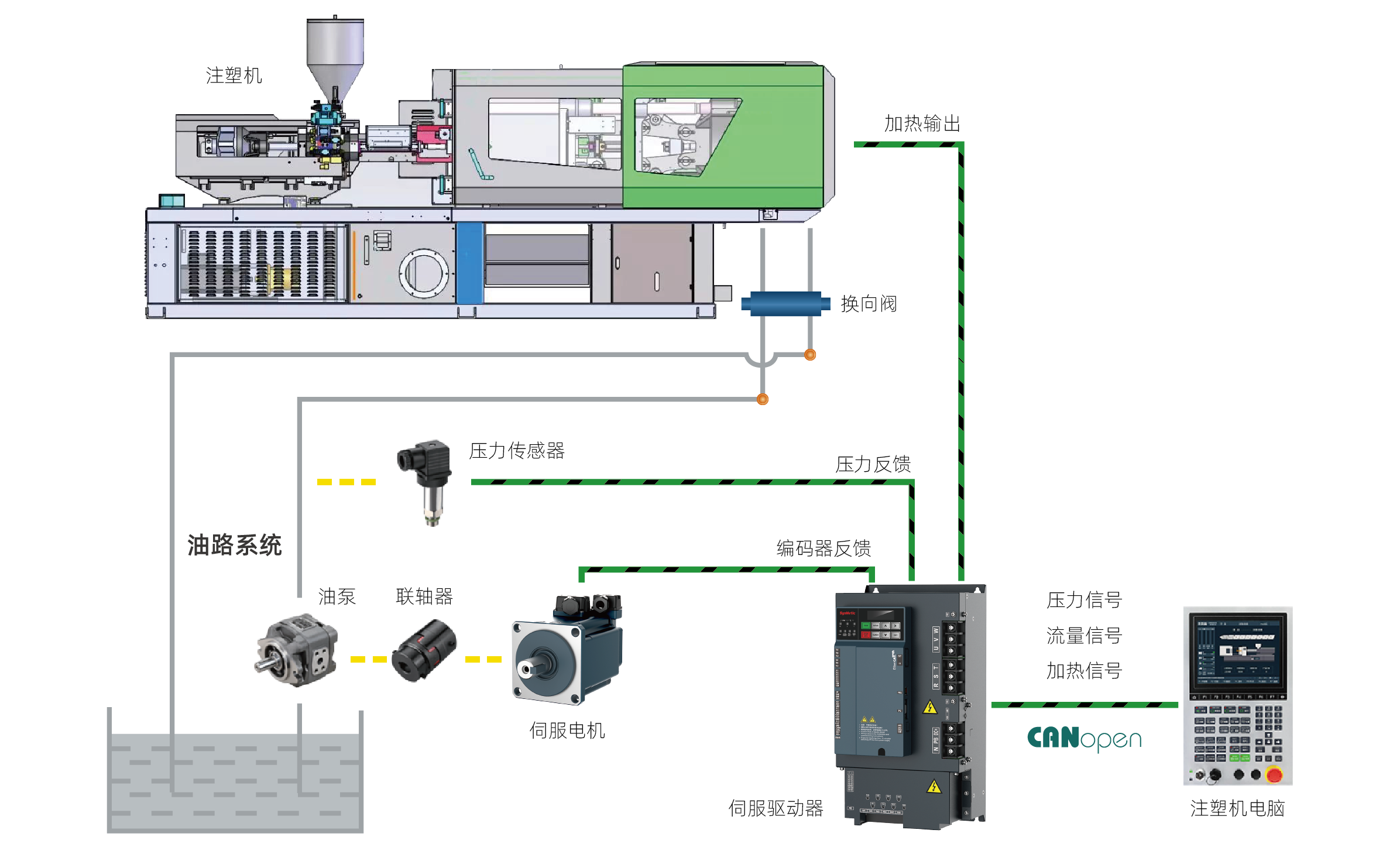

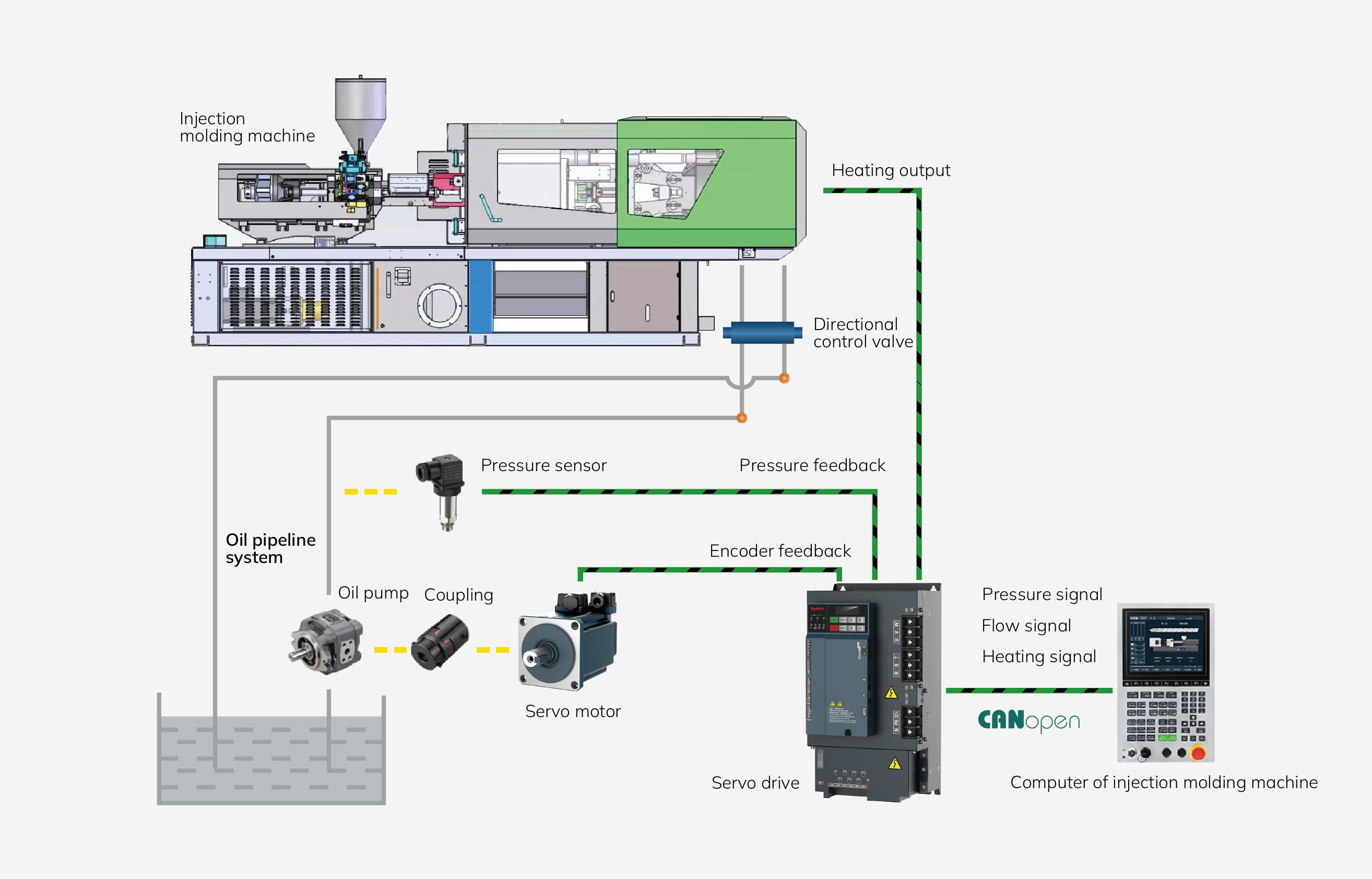

Solution Topology


Solution Advantages

Solution Highlights

Time saving and cost reduction, flexible and efficient

Compact electrical cabinet design: Requires fewer heating solid-state devices and braking resistors to reduce the volume of the electrical cabinet and achieve a more compact layout.

Efficient wiring operations: Optimizes the wiring layout, improves the wiring efficiency of the electrical cabinet, and reduces installation costs.

Safe and reliable operation

Full-series standard STO: Enhances system safety with the standard STO function, ensuring worry-free operations.

Multi-layer motor protection: Supports multiple motor temperature protection functions to fully guard stable motor operation.

Superior energy-saving performance

Energy recovery and reuse: Adopts an innovative design to release braking energy to the heating coils to realize energy circulation.

Braking resistor removal: Directly eliminates the need for braking resistors to reduce energy consumption and make the overall operation more energy-saving and environmentally friendly.

Efficient integration and heating

Dual-layer monitoring and protection: Integrates the heating function and supports short-circuit protection and current monitoring to strengthen the heating monitoring mechanism.

Improved production yield: Optimizes heating control to effectively prevent overheating failures and ensure the stable improvement of production quality.
