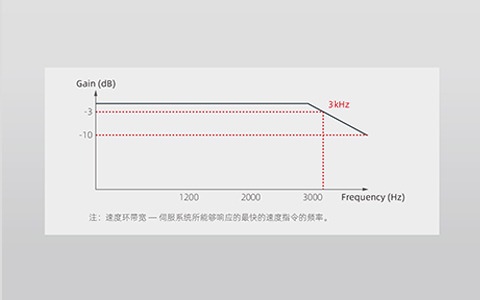

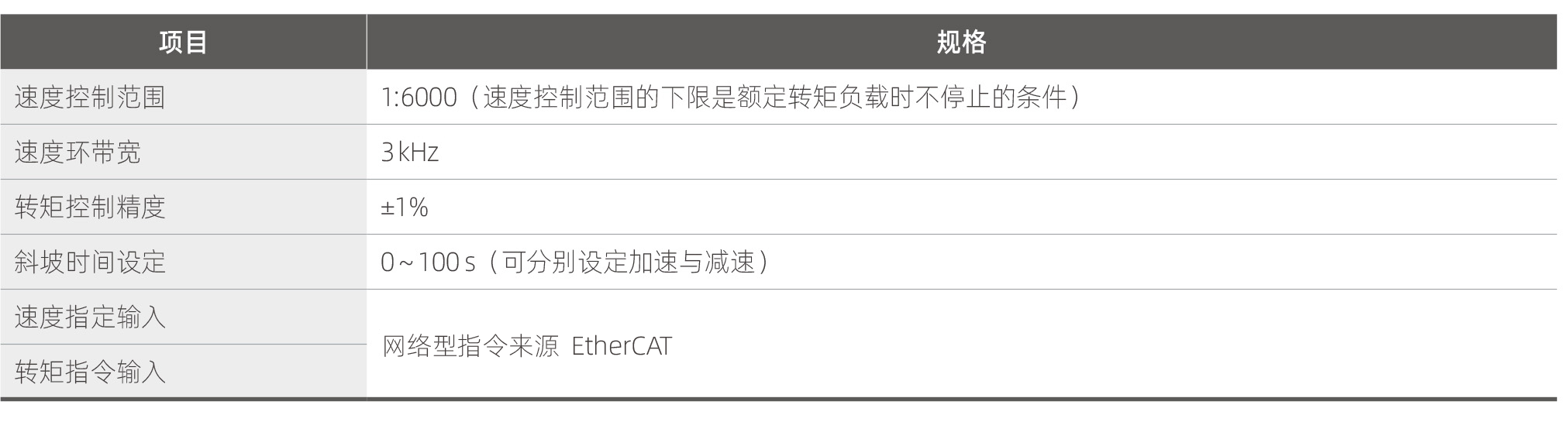

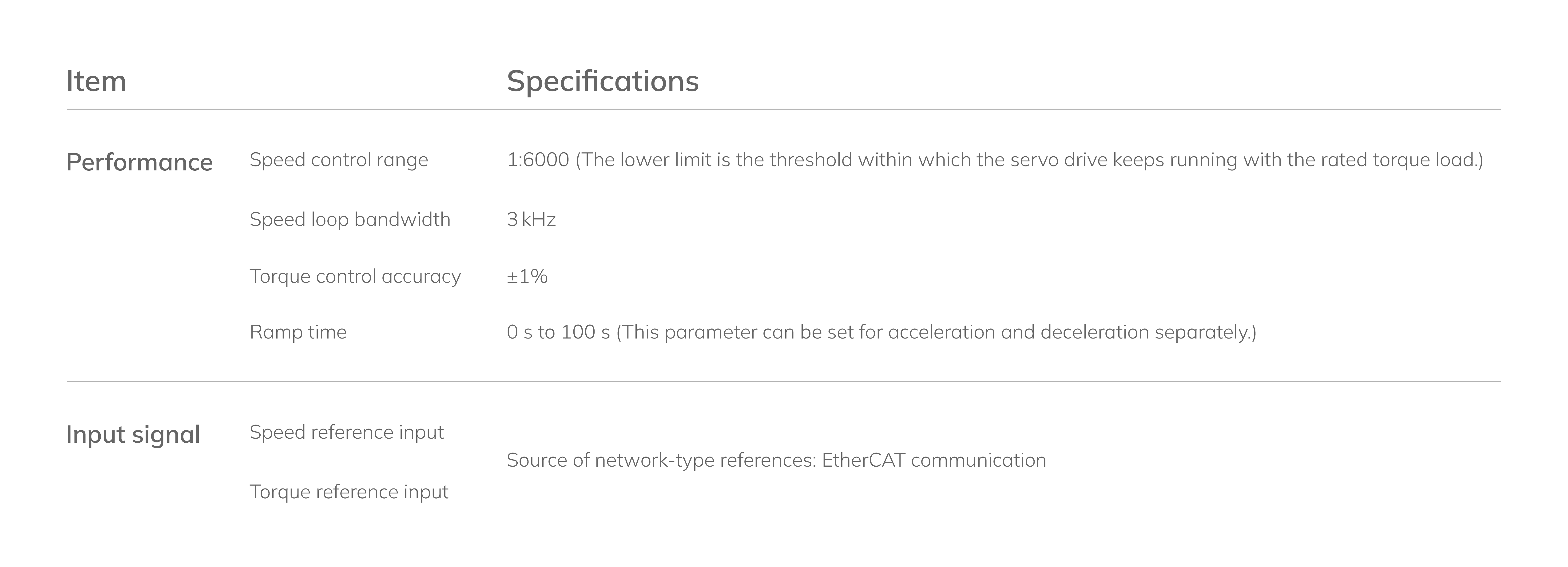

Faster dynamic response: The speed loop bandwidth of 3 kHz effectively shortens the tuning time.

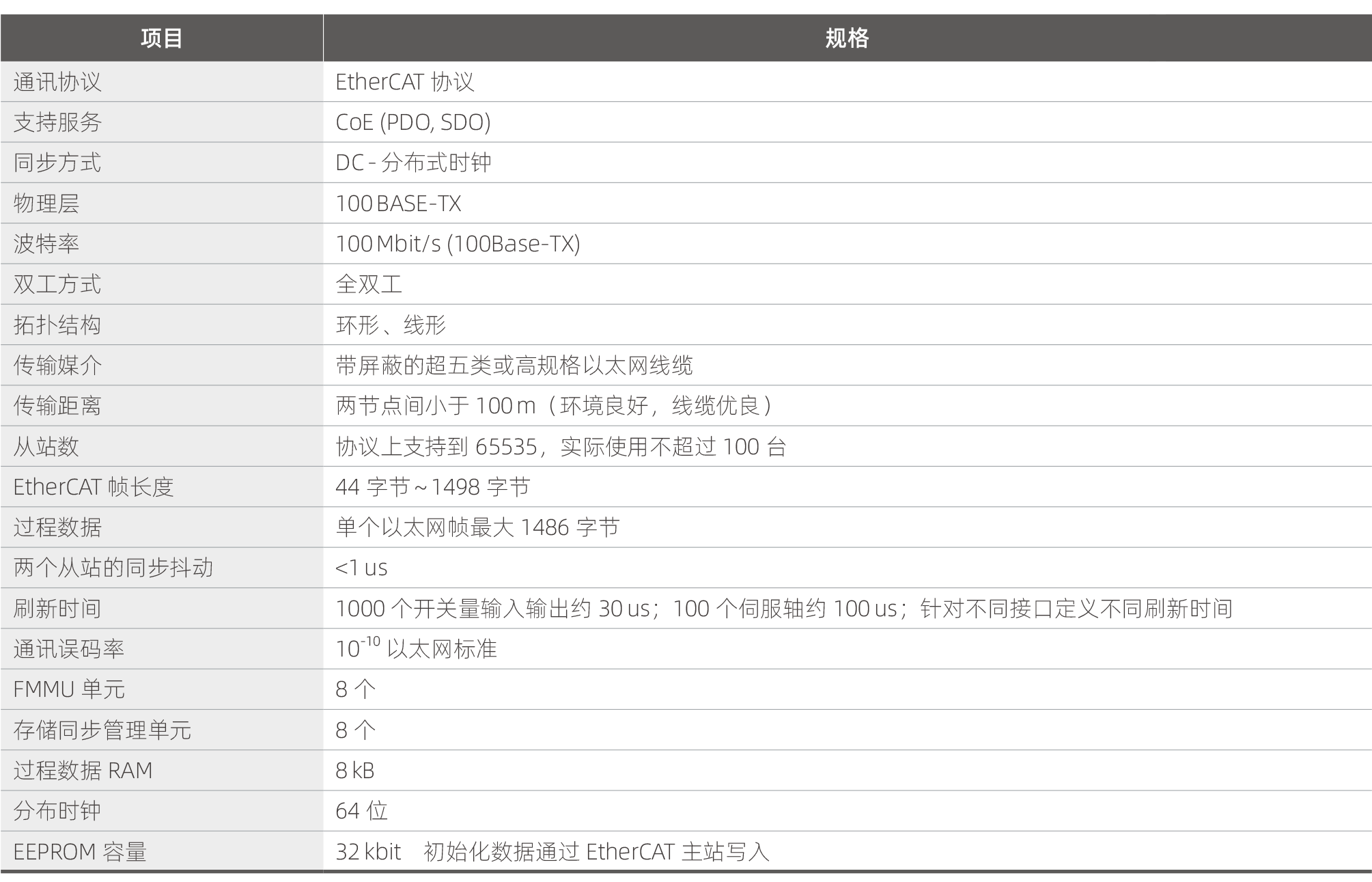

Shorter communication cycle: The full series is equipped with high-performance main control units to provide faster communication through the EtherCAT protocol. An ultra-short synchronization cycle of 125 μs is supported.

Smaller synchronization jitter: Through precise regulation with EtherCAT distributed clocks, the synchronization error is only 15 ns and the jitter is ±20 ns for 300 nodes within a distance of 120 m.

Low-frequency jitter suppression: The jitter suppression function is optimized to simultaneously suppress two types of low-frequency jitters at the device end, improving device stability and production efficiency.

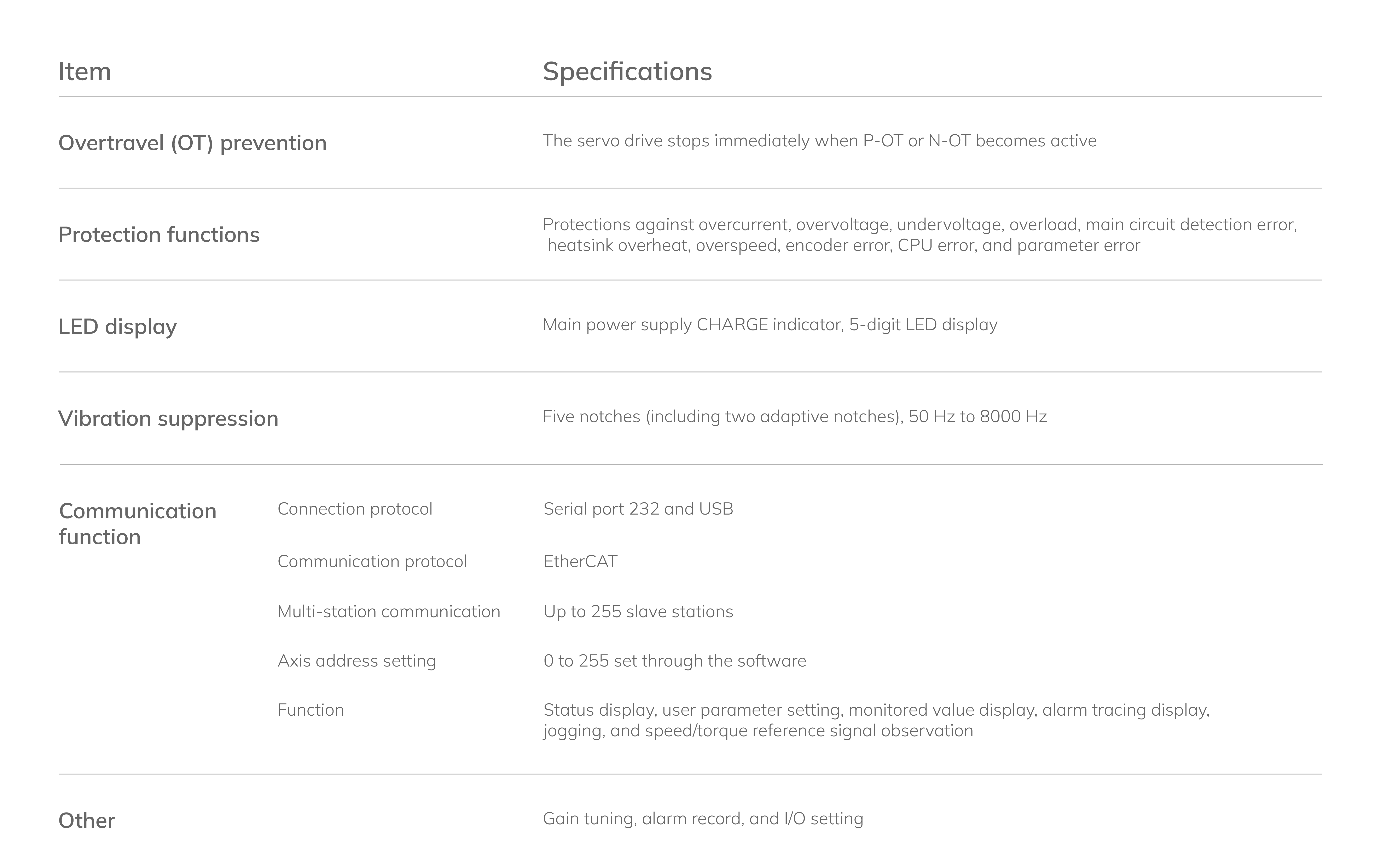

High-frequency vibration suppression: Five groups of notch filters (two groups of adaptive notch filters and three groups of manual notch filters) are configured to effectively suppress vibrations with simple operations, improving product performance.

High positioning accuracy: This product integrates high-resolution encoders and precision calibration and uses advanced control algorithms to achieve stable and precise motor control.

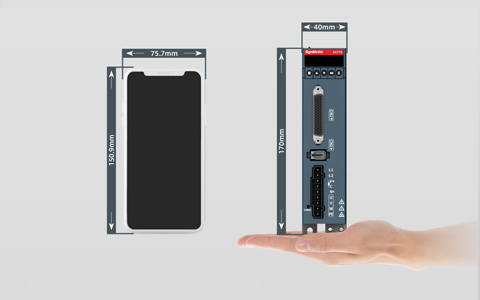

More compact size: The next-generation power devices and innovative design solution allow the drive and motor to be more compact in size, better meeting stringent installation requirements.

Easier commissioning: The configuration wizard and GUI-based parameter configuration make commissioning and configuration easier and more convenient.

Simpler operation: The following operations are supported: Copy servo parameters from one drive unit to others through the bus, enabling one-off batch commissioning. Upload and download data with one click (simultaneous upload and download supported without explicit restrictions). Read and write parameters through cascaded Ethernet ports. Import programming files through a PLC to implement one-touch programming.

Simpler connection: In compliance with industrial Ethernet standards for automation, standard interfaces make connections simpler. Only a single cable is required to transmit user, process, and diagnostic data in real time, reducing system complexity.

Built-in dynamic braking: In cases of servo faults, emergency stops, shutdowns, or motor brake failures, dynamic braking is activated to prevent device damage or physical injuries caused by rapid motor rotation, significantly enhancing safety.

Built-in temperature monitoring: Both the servo drive and servo motor support the temperature protection function to directly monitor the temperature status of the products through sensors. By doing so, faults can be detected or prevented at the earliest possibility, ensuring safe and reliable operation.

Harsh environment adaptability: The high protection design ensures stable operation even under harsh conditions.

STO integration: Electric shocks or mechanical injuries in fault conditions can be prevented without the need for output contactors.

High-quality motor: Brand-new structural design and manufacturing processes improve the product durability.
