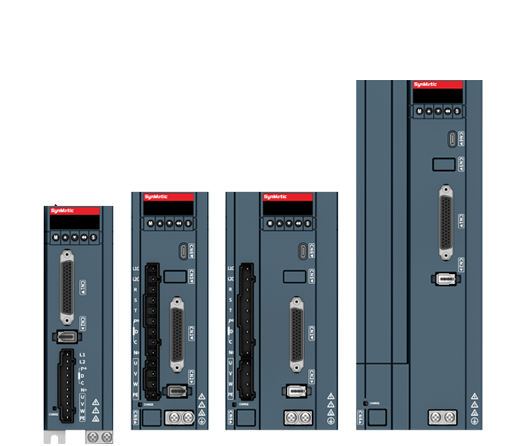

AS730 is a series of general-purpose servo drive products developed based on SynMatic's servo technology platform. This series adopts standard designs and features high quality guaranteed by the professional technology platform, configuration, commissioning, and quality management system of SynMatic. The AS730 series can be connected to both single-phase and three-phase grids, and has multiple models with power values ranging from 50 W to 7.5 kW to suit various industries, such as 3C (computer, communication and consumer electronics), photovoltaics, battery, and packaging. The system can work with PLC products of Beckhoff, Omron, and other mainstream brands to complete many motion control tasks in a flexible, efficient way.

Product Highlights

Excellent performance

Builds faster, stabler, and more accurate drive scenarios, guaranteeing hassle-free production.

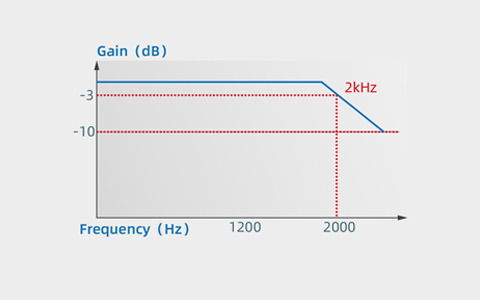

Faster dynamic response: The speed loop bandwidth of 2 kHz effectively shortens the tuning time.

Low-frequency jitter suppression: The jitter suppression function is optimized to simultaneously suppress two types of low-frequency jitters at the device end, improving device stability and production efficiency.

High-frequency vibration suppression: Five groups of notch filters (two groups of adaptive notch filters and three groups of manual notch filters) are configured to effectively suppress vibrations with simple operations, improving product performance.

Ease-of-use

Significantly improves the usability with the sophisticated and novel design.

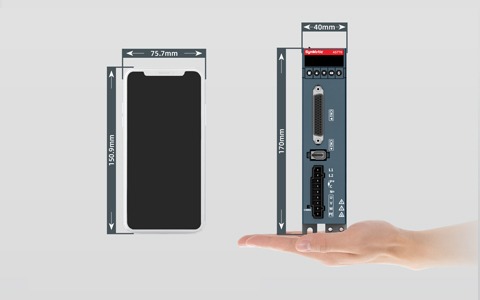

Low space requirements: Boosting a compact structure, this product adopts next-generation power devices and an innovative design to significantly reduce the overall space required and improve the layout flexibility of the drive system.

Easier commissioning: The configuration wizard and GUI-based parameter configuration make commissioning and configuration easier and more convenient. Servo parameters can be conveniently copied from one drive unit to others through the bus, enabling one-off batch commissioning.

Simpler operation: In compliance with industrial Ethernet standards, the following operations are supported: Use only a single cable to transmit user, process, and diagnostic data in real time. Upload and download data with one click. Read and write parameters through cascaded Ethernet ports.

Safety and reliability

Adopts a safety design and selective high-quality components and has passed comprehensive testing and verification.

Built-in temperature monitoring: Both the servo drive and servo motor support the temperature protection function to directly monitor the temperature status of the products through sensors. By doing so, faults can be detected or prevented at the earliest possibility, ensuring safe and reliable operation.

High-quality motor: Brand-new structural design and manufacturing processes improve the product durability.

Harsh environment adaptability: The high protection design ensures stabler drive operation even under harsh conditions. Wide voltage range: The single-phase or three-phase voltage range of 200 VAC to 240 VAC (–10% to +10%) and the three-phase voltage range of 380 VAC to 480 VAC (–10% to +10%). The coated PCBs improve the stability of drives in harsh environments.

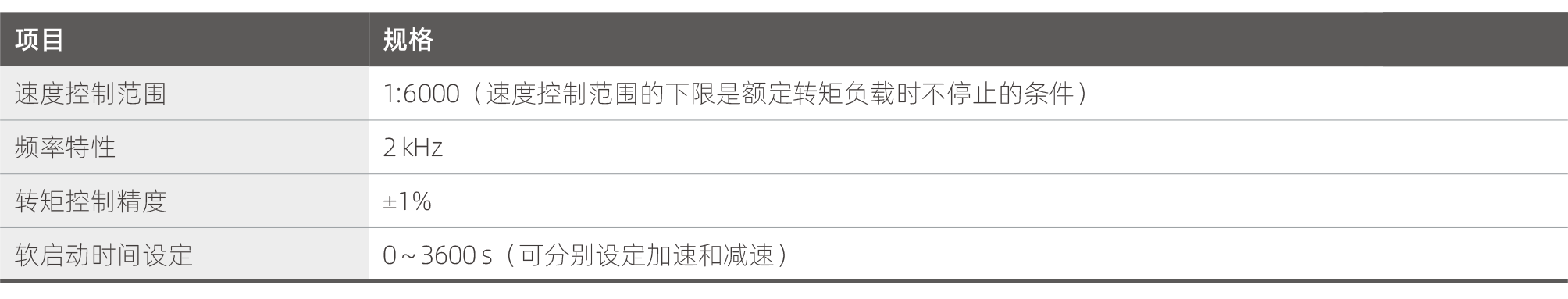

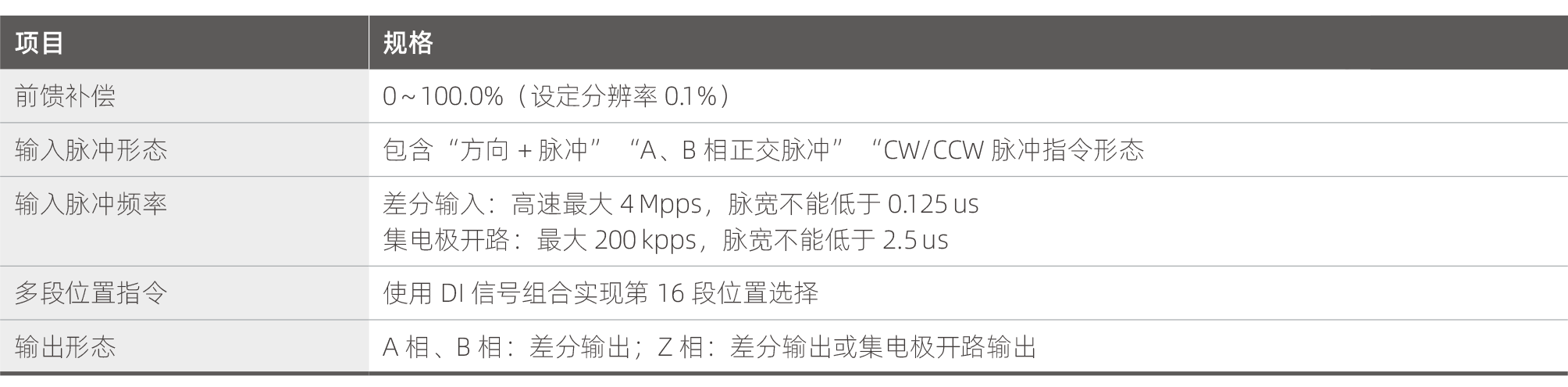

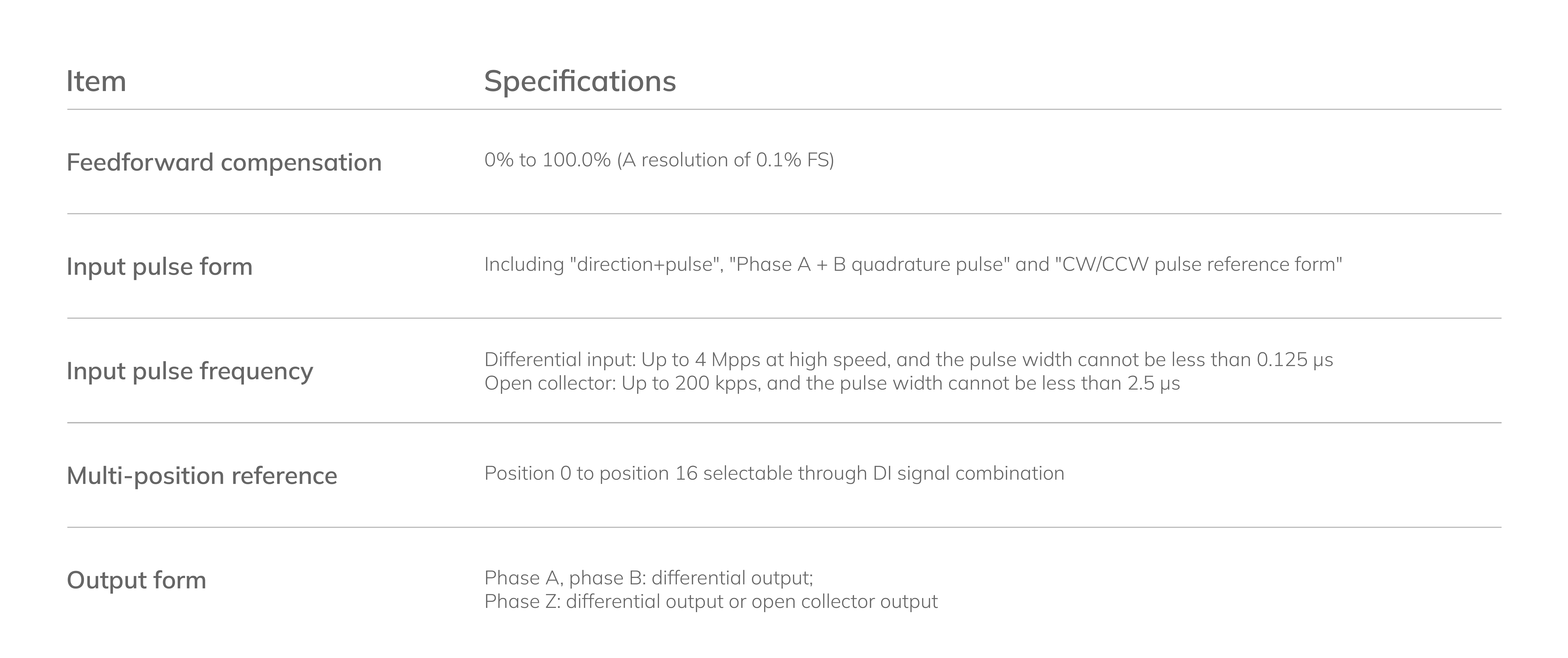

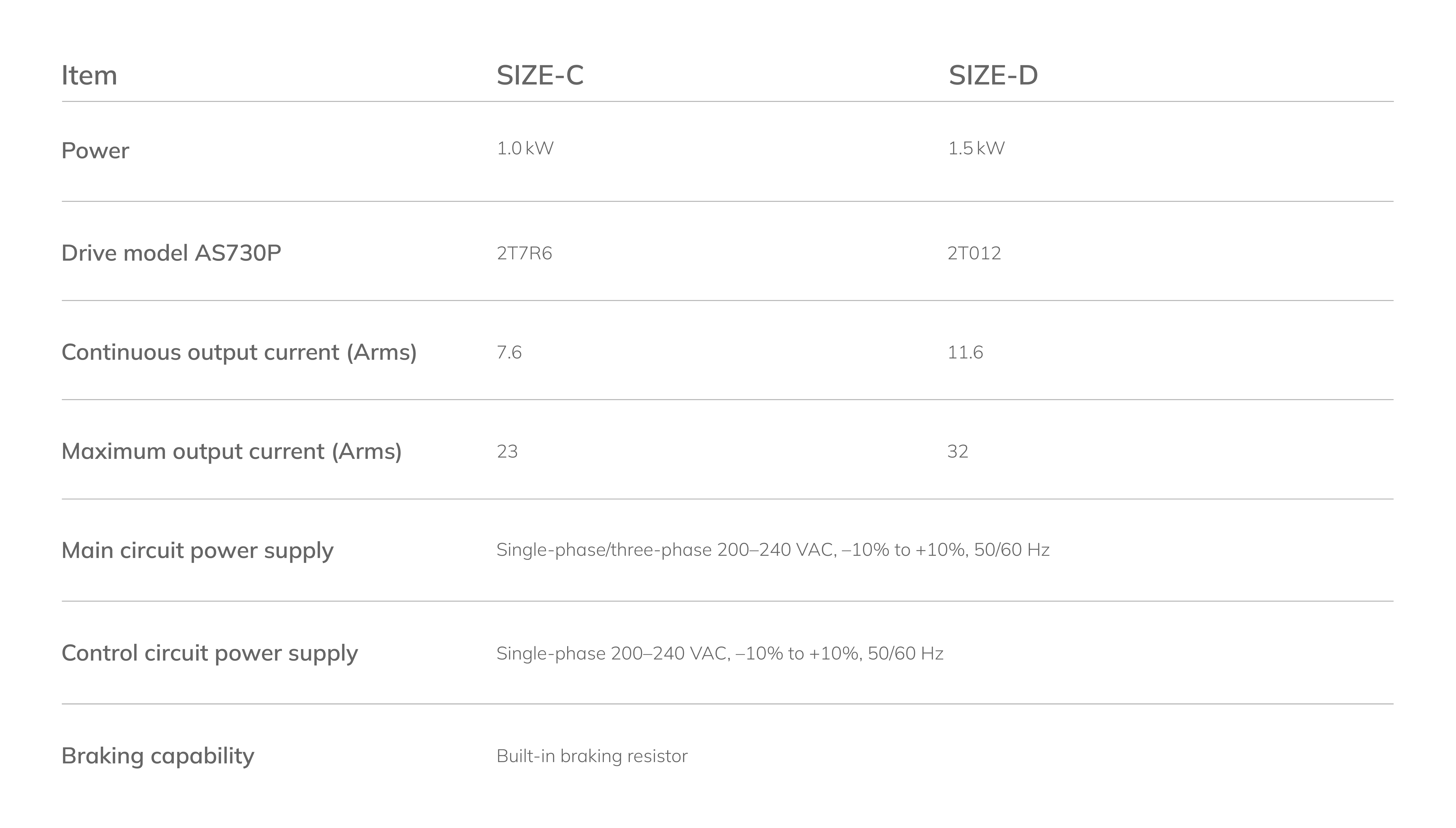

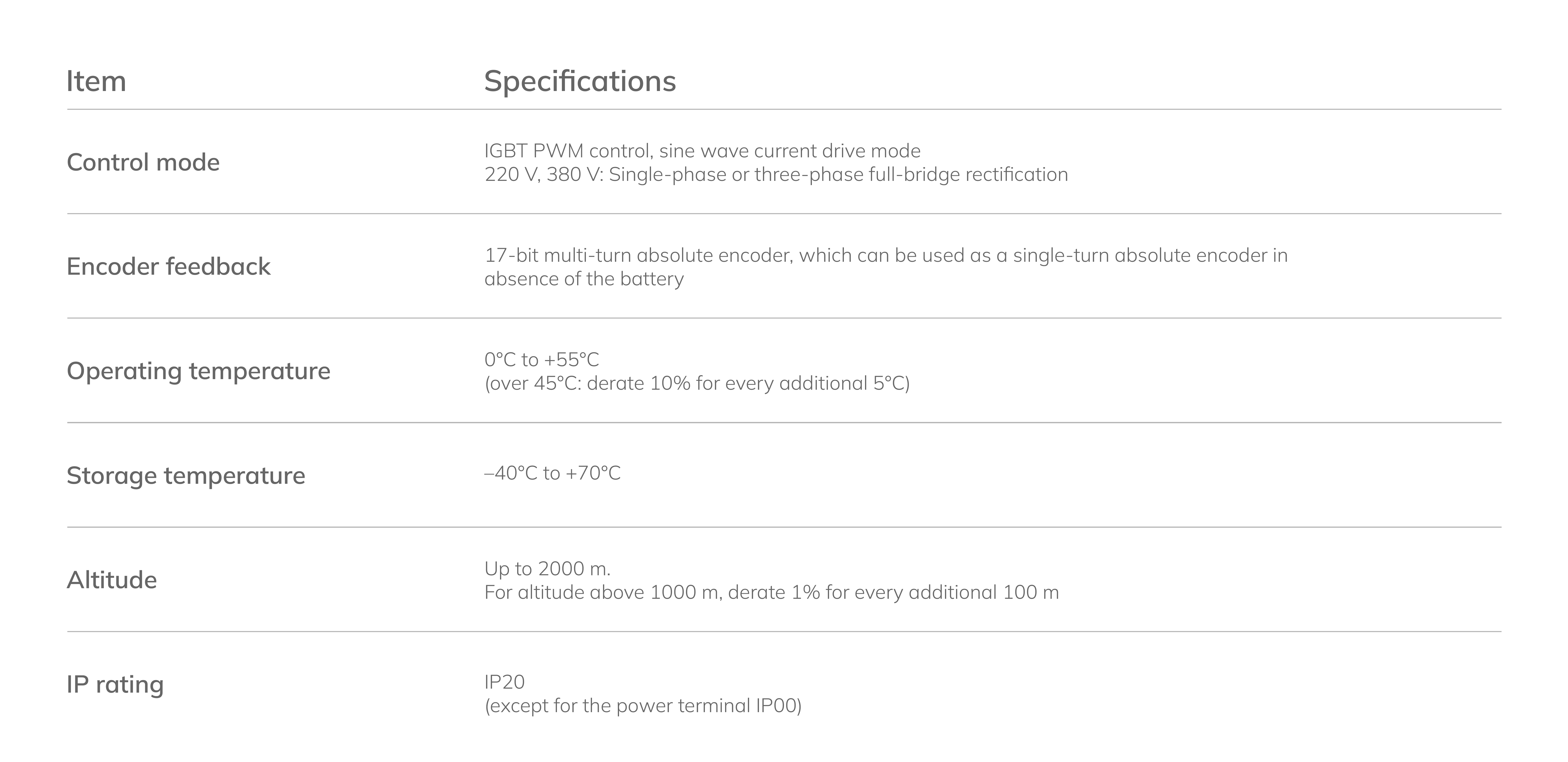

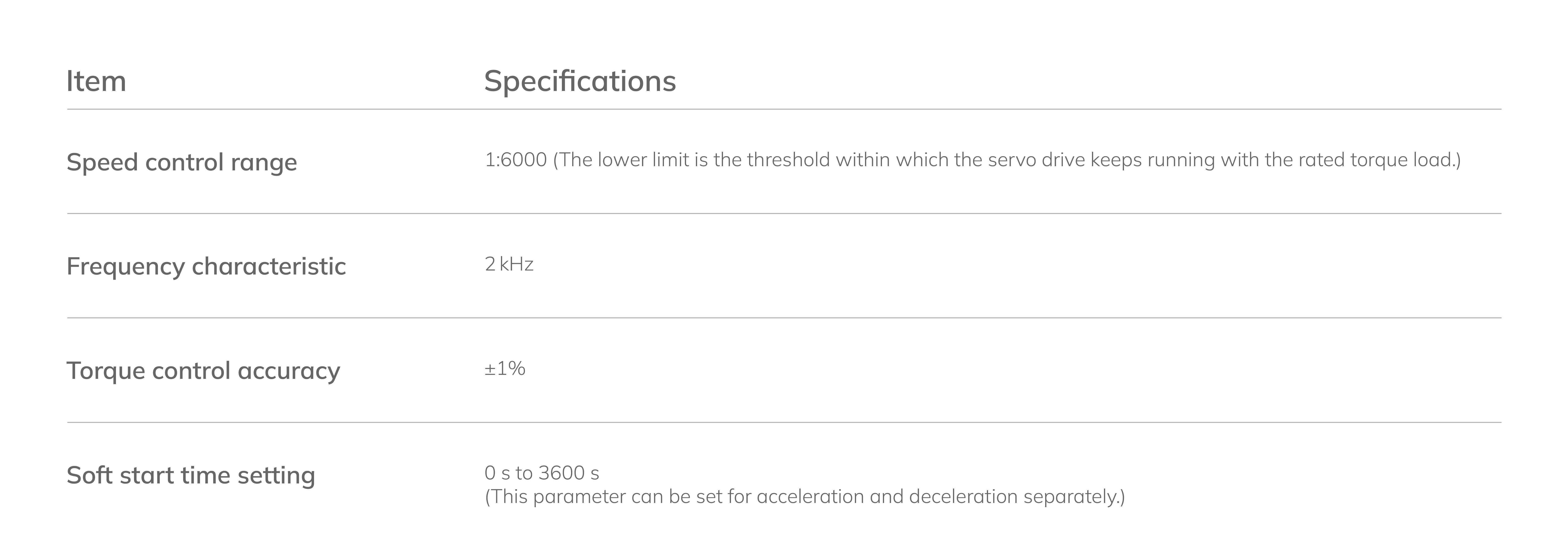

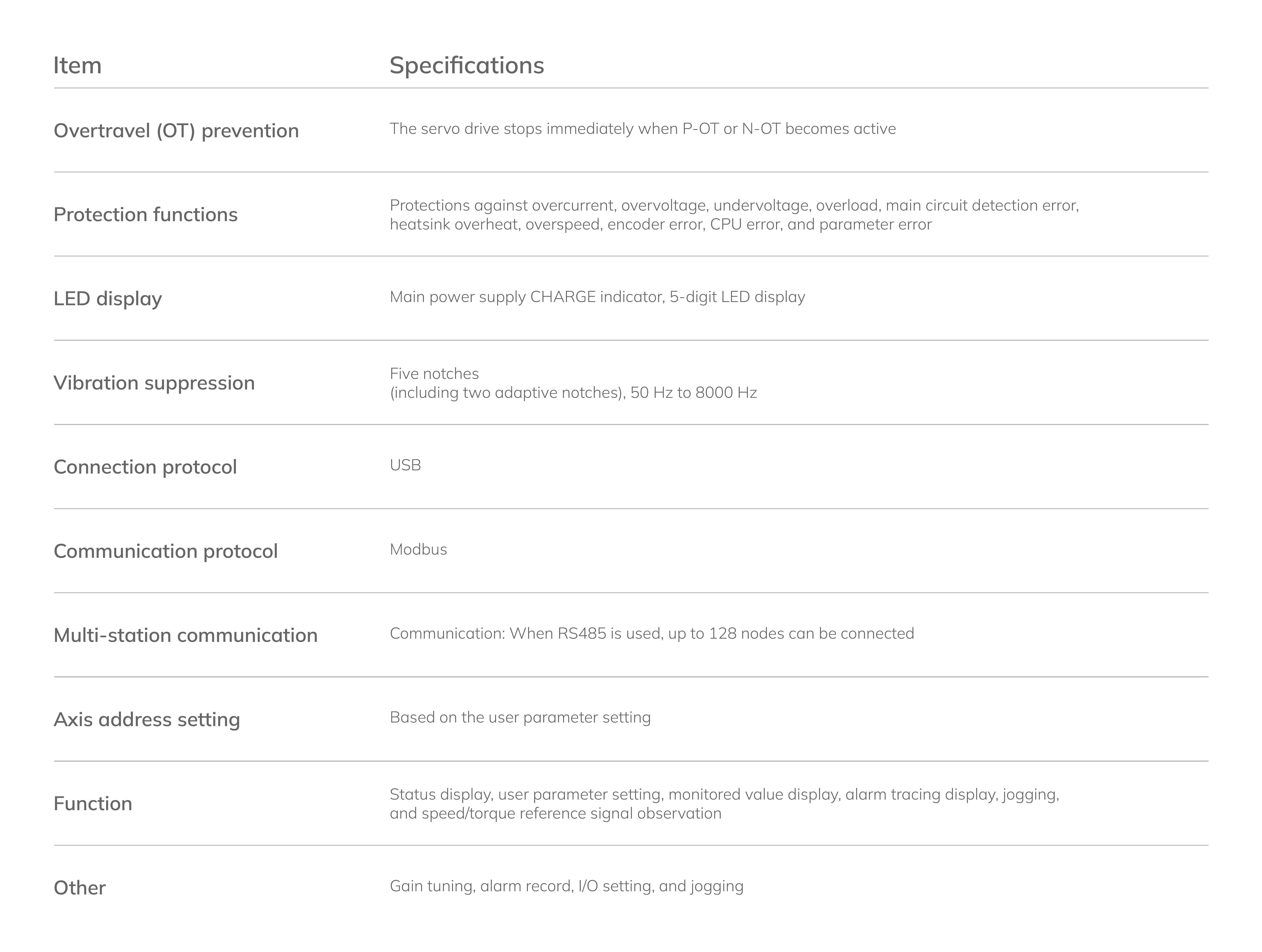

Technical Data

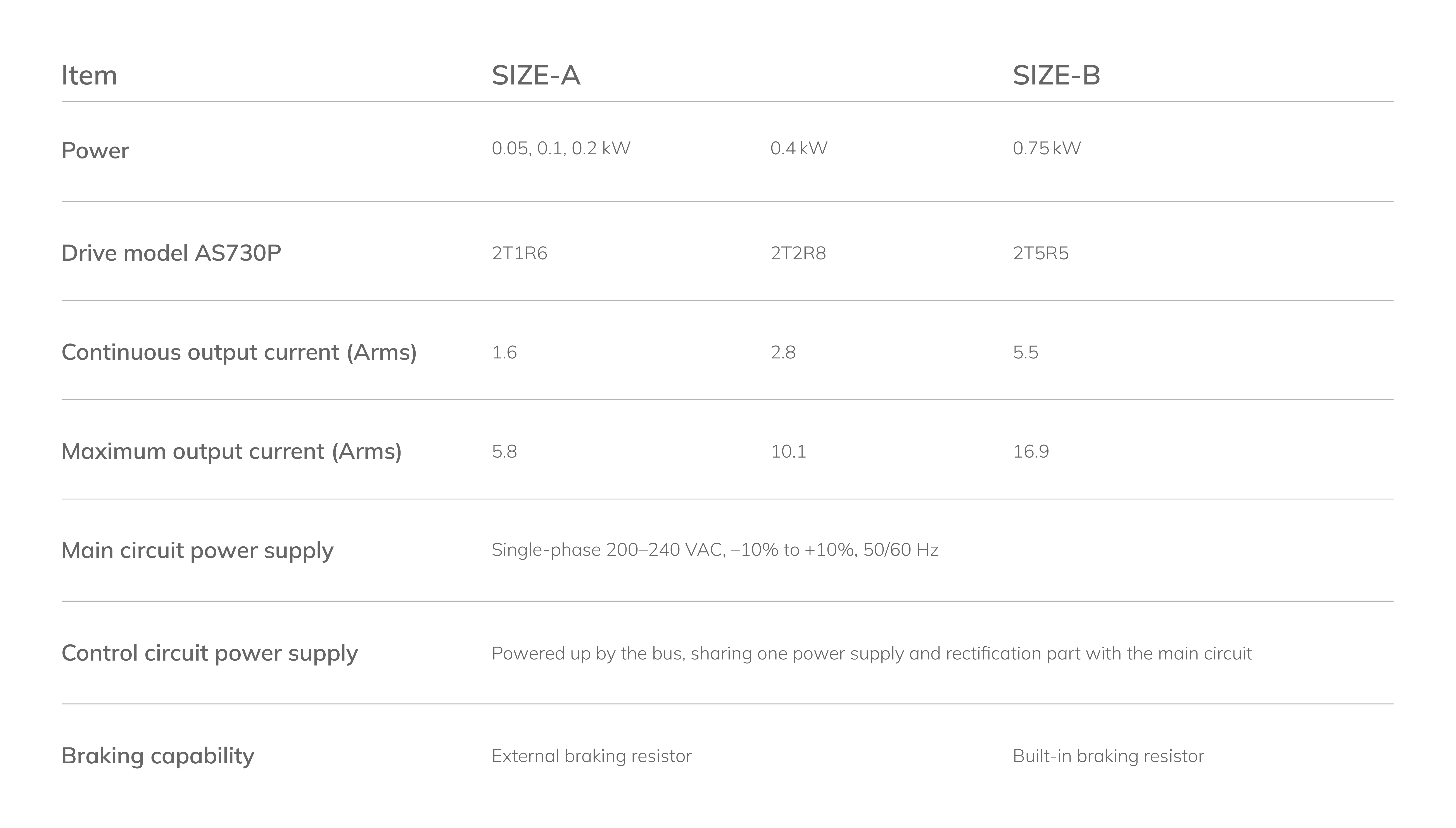

Single-phase 220 V servo drive
