Custom development: Allows for simple and intuitive parameter settings. The factory parameters can meet basic site requirements, reducing the commissioning time.

Multi-motor driving: Easily drives asynchronous motors, synchronous motors, and direct-drive motors, flexibly adapting to various application scenarios and improving production efficiency.

Permanent magnet synchronous motor support: Significantly improves the system energy-saving rate and reduces operating costs.

Smart factory integration: Supports expansion to connect to the Ethernet MES system to realize scheduled meter reading and remote monitoring, and integrates the controller into the smart factory big data management system.

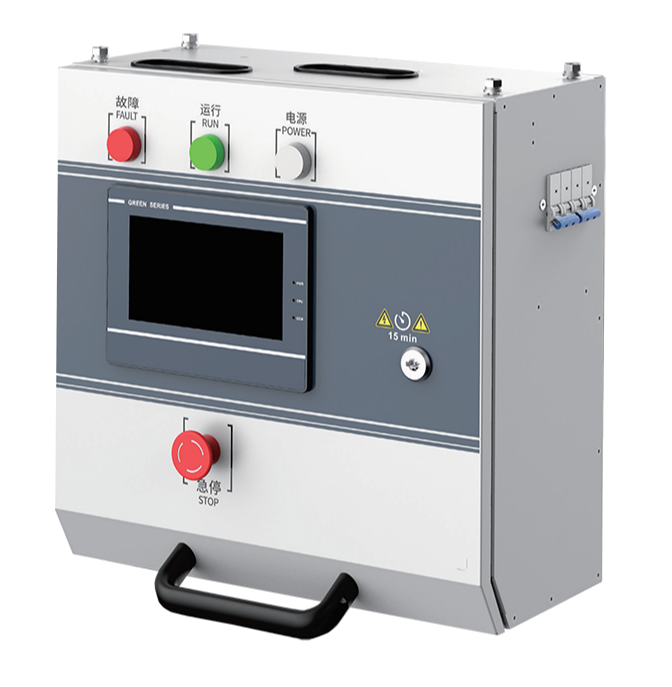

Integrated electric cabinet: Simplifies site construction, electrical power distribution, and installation processes, improving work efficiency.

Modular component: Accelerates the wiring speed, reduce maintenance difficulty, and enhance overall maintainability.

Easy whole unit disassembly and assembly: Optimizes the whole unit disassembly and assembly design to make daily maintenance and troubleshooting more convenient and efficient.

Compact size: Reduces the volume by more than 70% compared with traditional electric cabinets and supports beam installation.

High integration: Uses a multi-layer PCB structure to determine faults in a more intuitive manner.

Superior performance: Provides extraordinary operational capabilities by using the 283** 4-core domain controller the same as that used in Tesla.

Intelligent control: Uses the built-in weft density control algorithm for circular looms to precisely control the motor, let-off unit, cloth lifting unit, and winding shaft, effectively preventing loose weft and crowded weft.

Human-machine interface: Allows users to set and monitor system parameters and process parameters.
