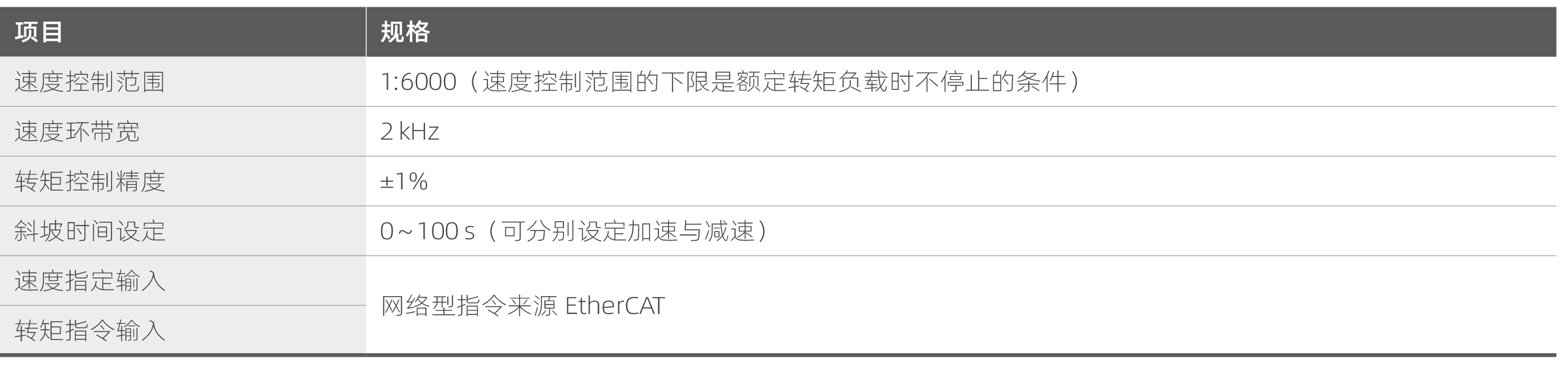

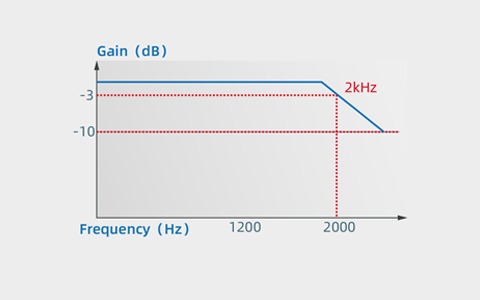

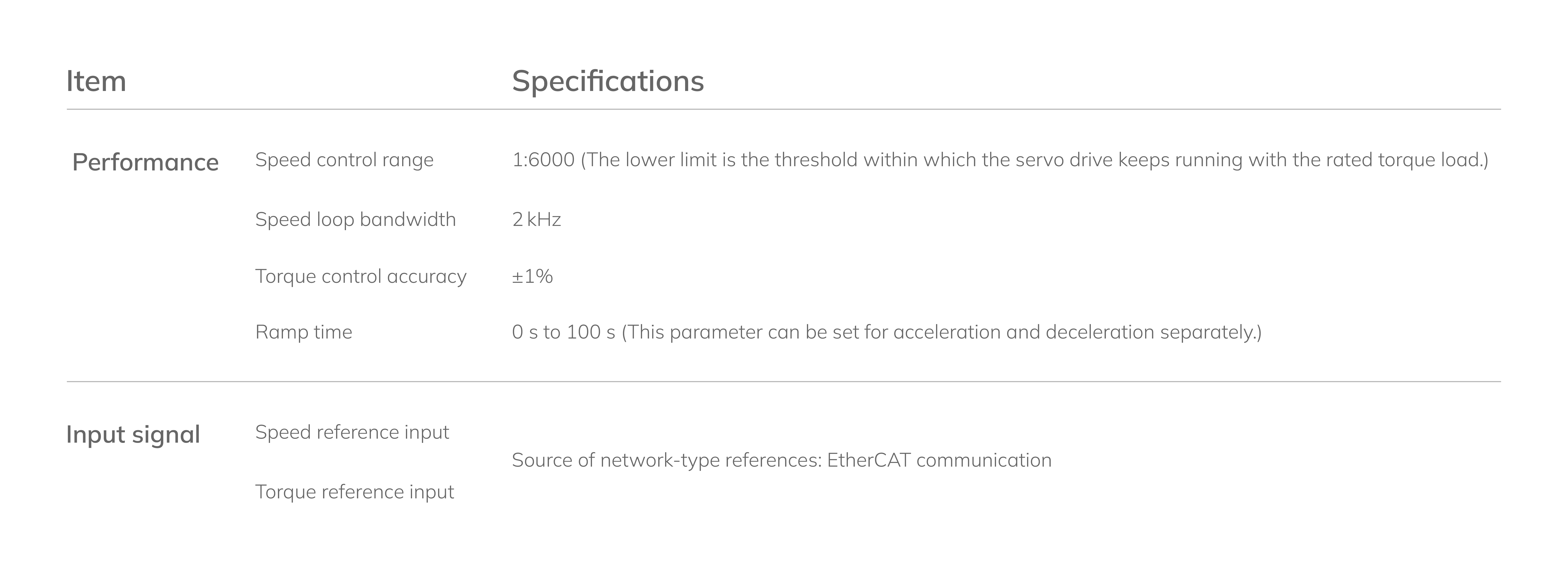

Faster dynamic response: The speed loop bandwidth of 2 kHz effectively shortens the tuning time.

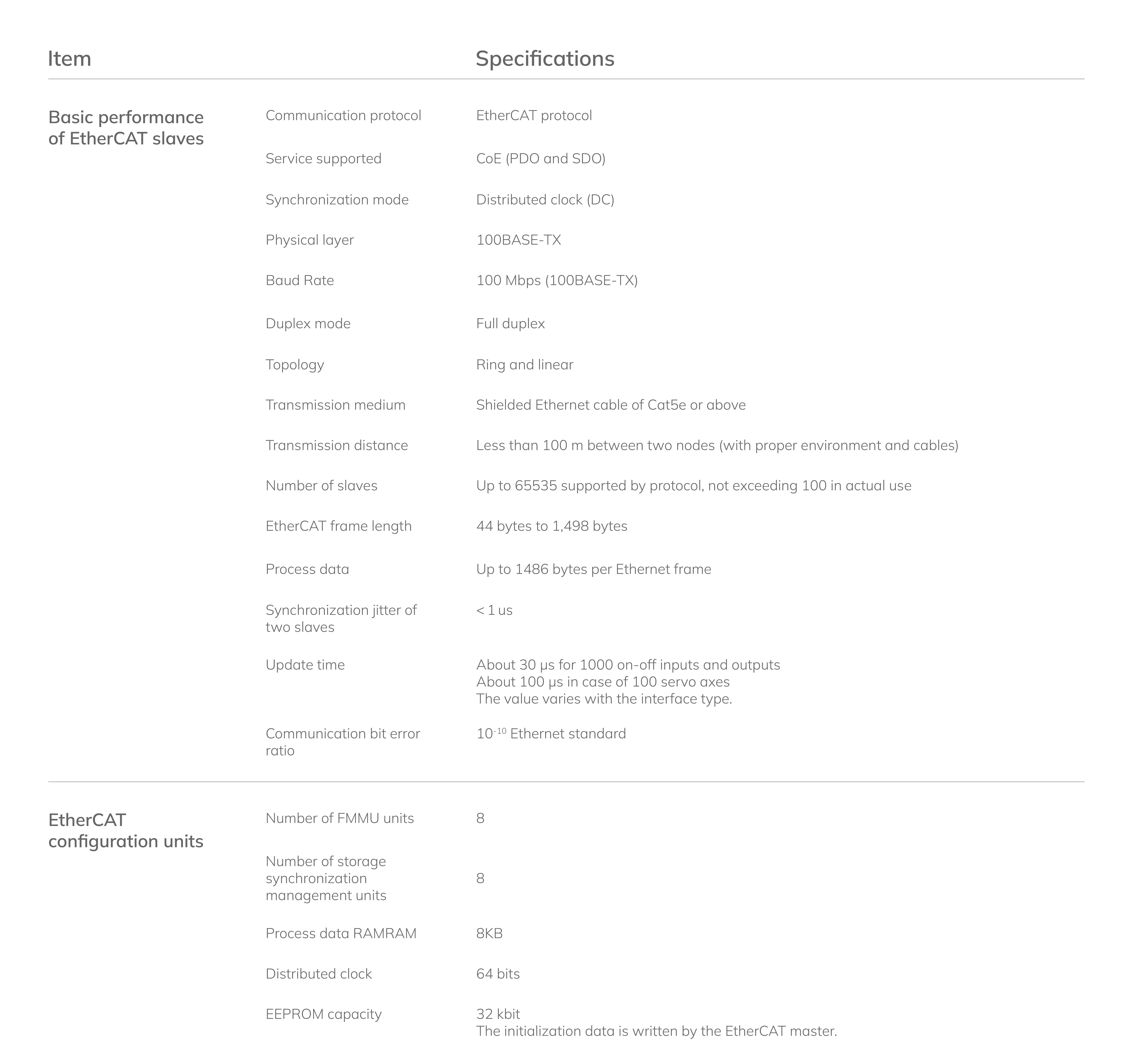

Shorter communication cycle: The full series is equipped with high-performance main control units to provide faster communication through the EtherCAT protocol. An ultra-short synchronization cycle of 125 μs is supported.

Smaller synchronization jitter: Through precise regulation with EtherCAT distributed clocks, the synchronization error is only 15 ns and the jitter is ±20 ns for 300 nodes within a distance of 120 m.

Low-frequency jitter suppression: The jitter suppression function is optimized to simultaneously suppress two types of low-frequency jitters at the device end, improving device stability and production efficiency.

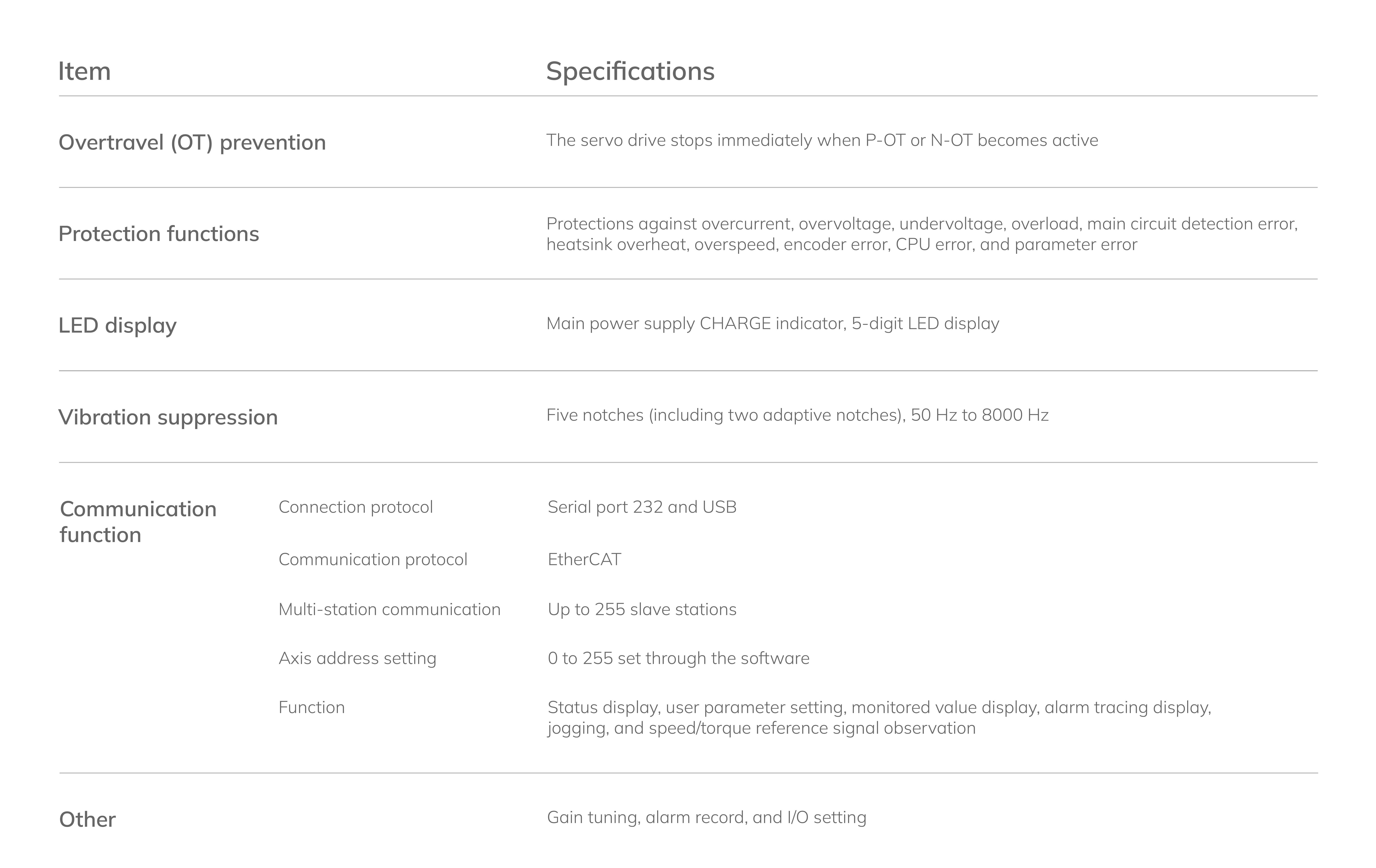

High-frequency vibration suppression: Five groups of notch filters (two groups of adaptive notch filters and three groups of manual notch filters) are configured to effectively suppress vibrations with simple operations, improving product performance.

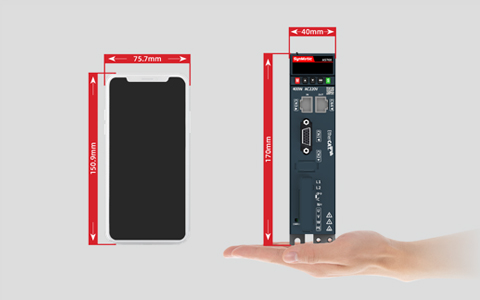

Low space requirements: Boosting a compact structure, this product adopts next-generation power devices and an innovative design to significantly reduce the overall space required and improve the layout flexibility of the drive system.

Easier commissioning: The configuration wizard and GUI-based parameter configuration make commissioning and configuration easier and more convenient. Servo parameters can be conveniently copied from one drive unit to others through the bus, enabling one-off batch commissioning.

Simpler operation: In compliance with industrial Ethernet standards, the following operations are supported: Use only a single cable to transmit user, process, and diagnostic data in real time. Upload and download data with one click. Read and write parameters through cascaded Ethernet ports. Import programming files through a PLC to implement one-touch programming.

Built-in temperature monitoring: Both the servo drive and servo motor support the temperature protection function to directly monitor the temperature status of the products through sensors. By doing so, faults can be detected or prevented at the earliest possibility, ensuring safe and reliable operation.

High-quality motor: Brand-new structural design and manufacturing processes prolong the motor service life.

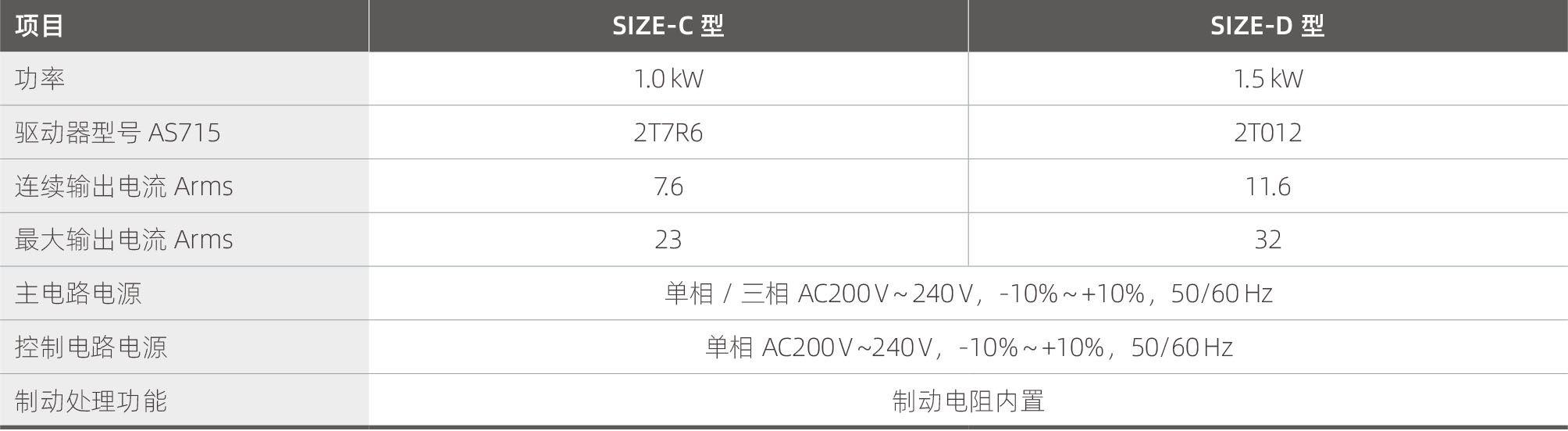

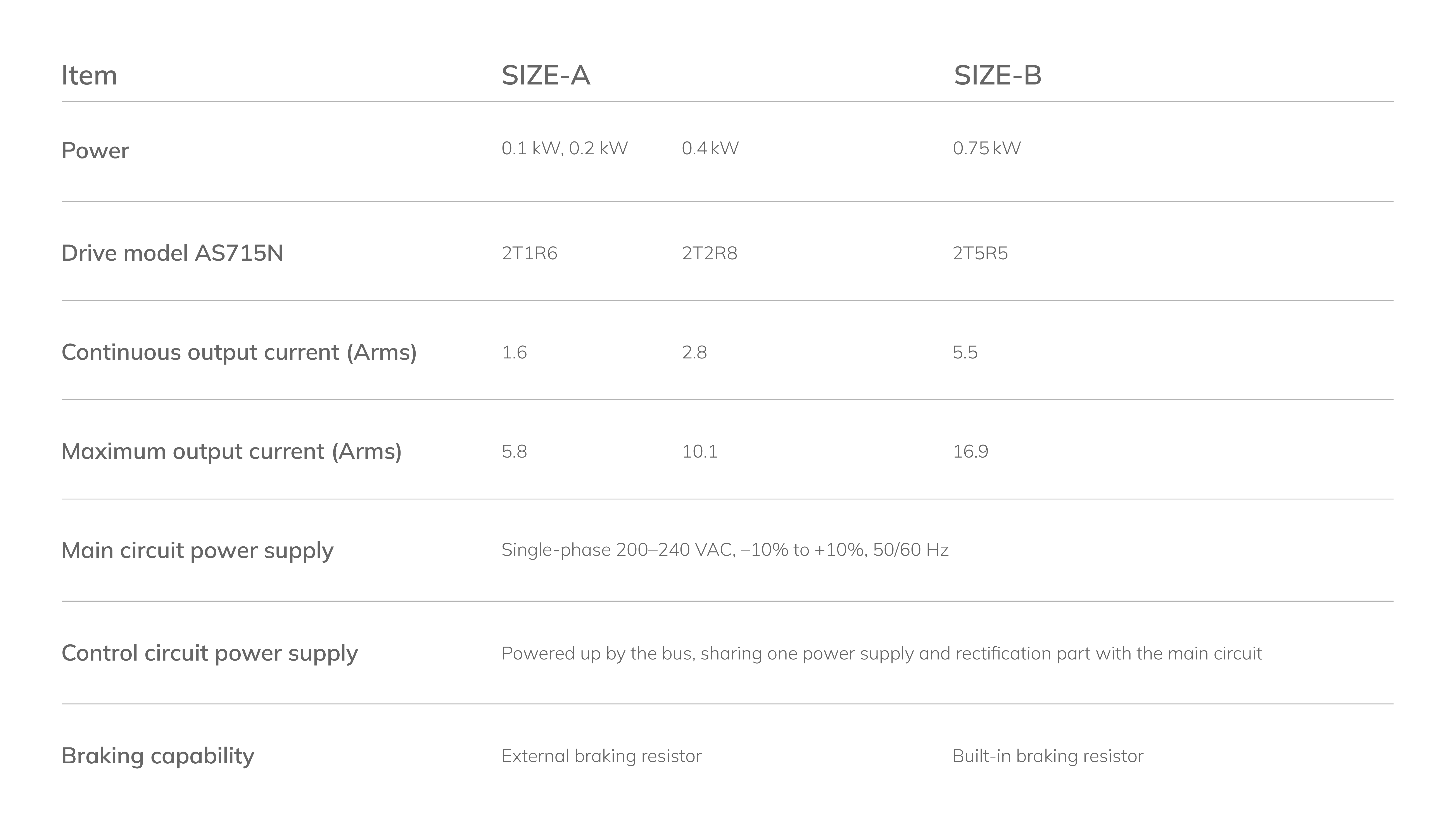

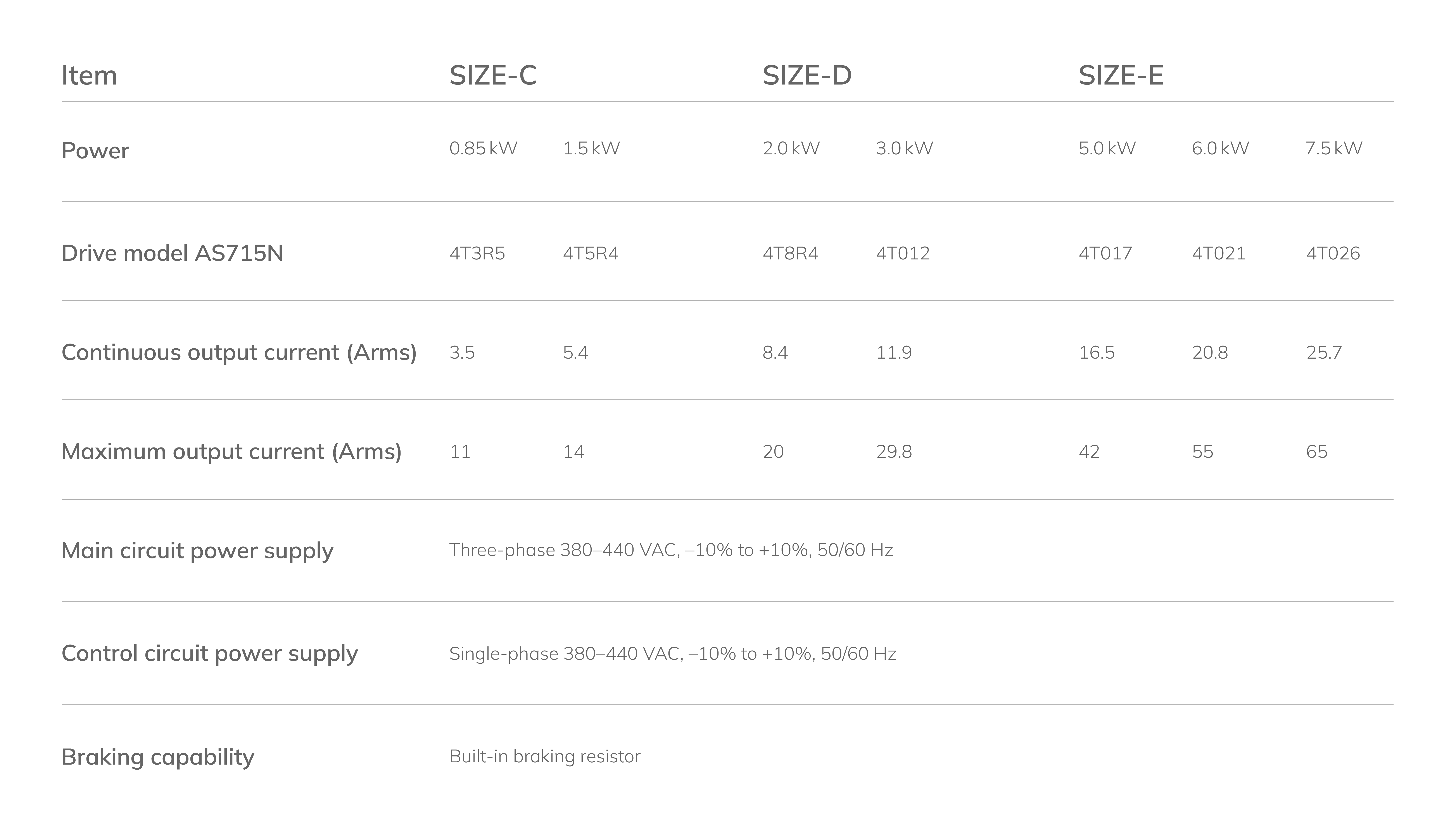

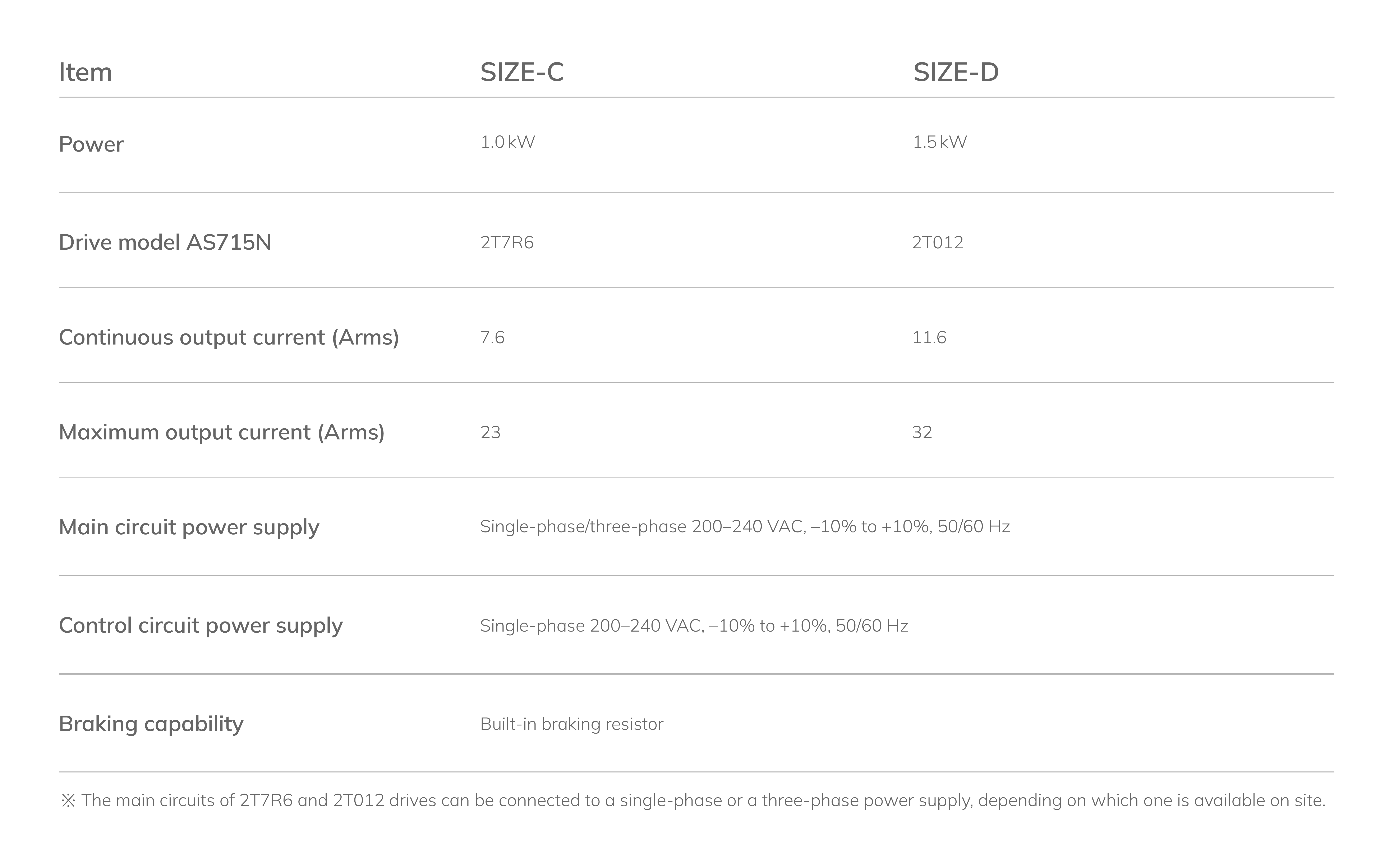

Harsh environment adaptability: The high protection design ensures stabler drive operation even under harsh conditions. Wide voltage range: The single-phase or three-phase voltage range of 200 VAC to 240 VAC (–10% to +10%) and the three-phase voltage range of 380 VAC to 480 VAC (–10% to +10%). The coated PCBs improve the stability of drives in harsh environments.
