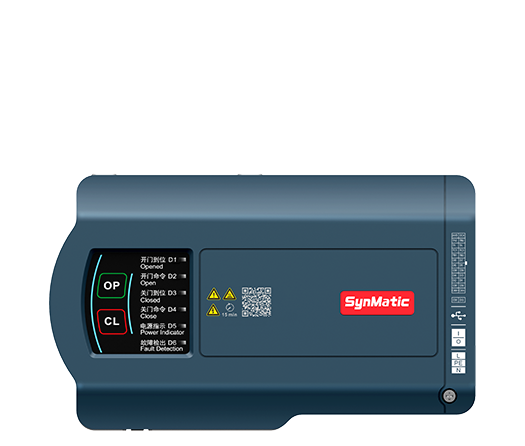

Redefined integrated door motor controller: Adopts a brand-new integrated design to pursue both aesthetics and practicality, delivering robust and compact products.

High integration: Integrates the door motor, encoder, and drive into one unit to simplify the installation process, improve installation flexibility, and enable wide applications. The optional car top control function further enhances the customization and intelligence level of the product.

Simplified wiring and enhanced anti-interference capability: Eliminates traditional wiring between the encoder and drive to effectively reduce external interference sources.

Bluetooth module configuration: Provides a built-in Bluetooth module for remote commissioning and program upgrade through a mobile app, enabling wireless operations and significantly improving commissioning efficiency.

One-touch operation: Provides one-touch direction adjustment and system commissioning functions so that users can easily change the motor rotation direction with one touch in the app. This product also allows you to perform complex operations such as motor tuning, door width learning, door knife stroke learning, and door knife type identification (synchronous and asynchronous), greatly lowering the commissioning threshold.

Automatic curve generation: Applies advanced algorithms to automatically generate efficient operation curves based on different door widths and positions, requiring no manual intervention.

High carrier mute operation: Adopts a high carrier design to effectively reduce operational noise.

Obstruction protection and power-off anti-clamping: Integrates door opening/closing obstruction protection and power-off anti-clamping functions to ensure timely response upon emergency and protect passenger safety.

Mechanical and electrical protection: Provides door knife jamming detection and protection and motor overheat protection mechanisms to effectively prolong the service life of the product.
