ACE8000

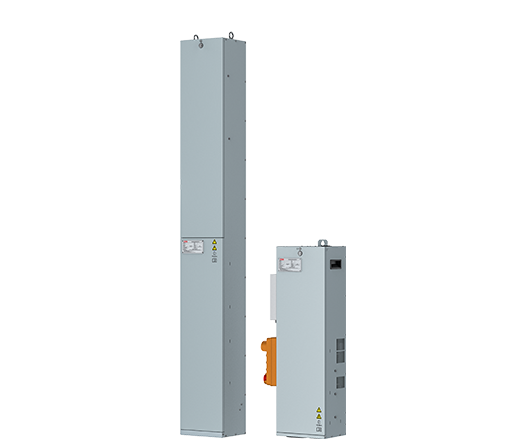

Control cabinet without contactor

Reduces costs, noise, and volume and improves efficiency, comprehensively enhancing elevator performance and safety.

Control cabinet without contactor applies the STO and SBC technologies to traditional control cabinet with contactor in accordance with the new national standard. The replacement of RUN, star sealing, and brake contactors enables lower noise, smaller size, and lower cost of the control cabinet. Customers can also choose whether to retain the star sealing contactor to meet their diversified needs.

Product Highlights

Cost effectiveness

01

Cost effectiveness

Hardware cost reduction: Adopts an integrated design to eliminate the procurement and installation costs of traditional components such as RUN, star sealing, and brake contactors. This cuts down the initial investment, simplifies the subsequent maintenance processes, and further reduces the long-term operation costs.

Performance optimization

02

Performance optimization

Low-noise operation: Adopts an innovative design to effectively eliminate the primary noise source in the system.

Compact and efficient: Integrates an AC drive inside the product to significantly reduce the volume of the control cabinet.

Fast response: Applies advanced technologies to the STO circuit to achieve a response speed faster than traditional contactors.

Safety guarantee

03

Safety guarantee

Advanced safety system: Adopts a mutually monitored dual-channel topology and integrates a programmable electronic safety system related to elevator safety to reach SIL3. This comprehensively improves the safety performance of elevators from both hardware and software perspectives.

Technical Data

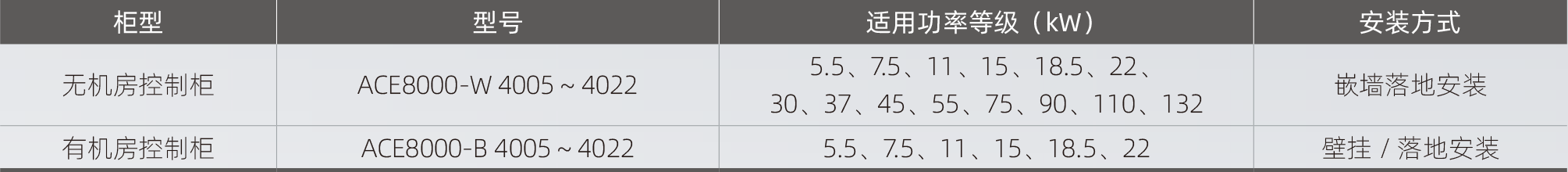

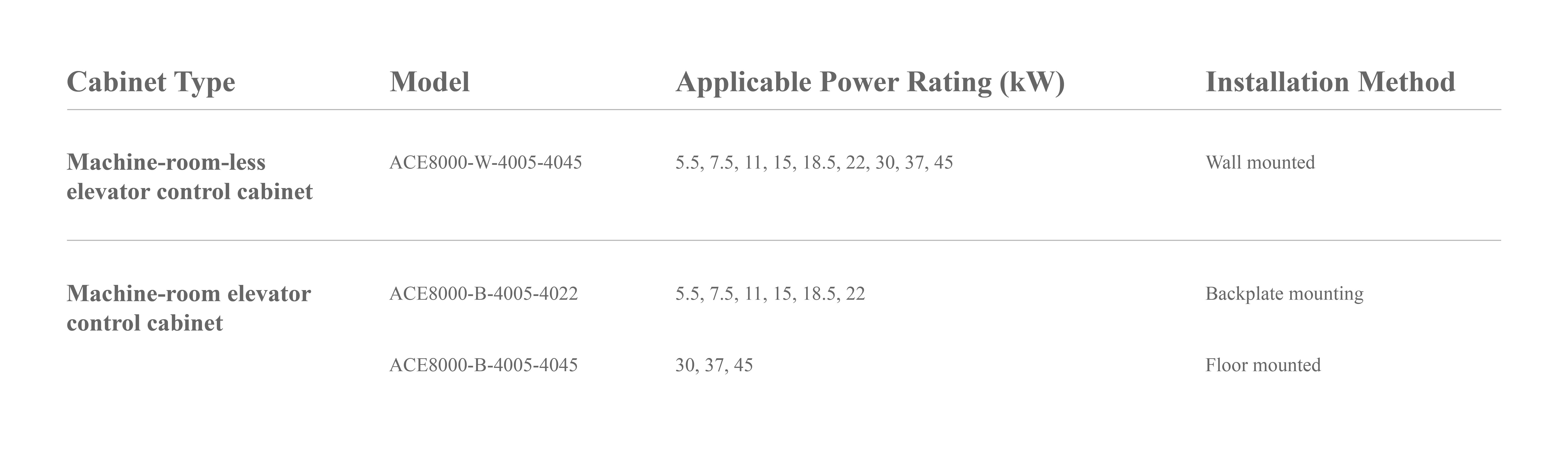

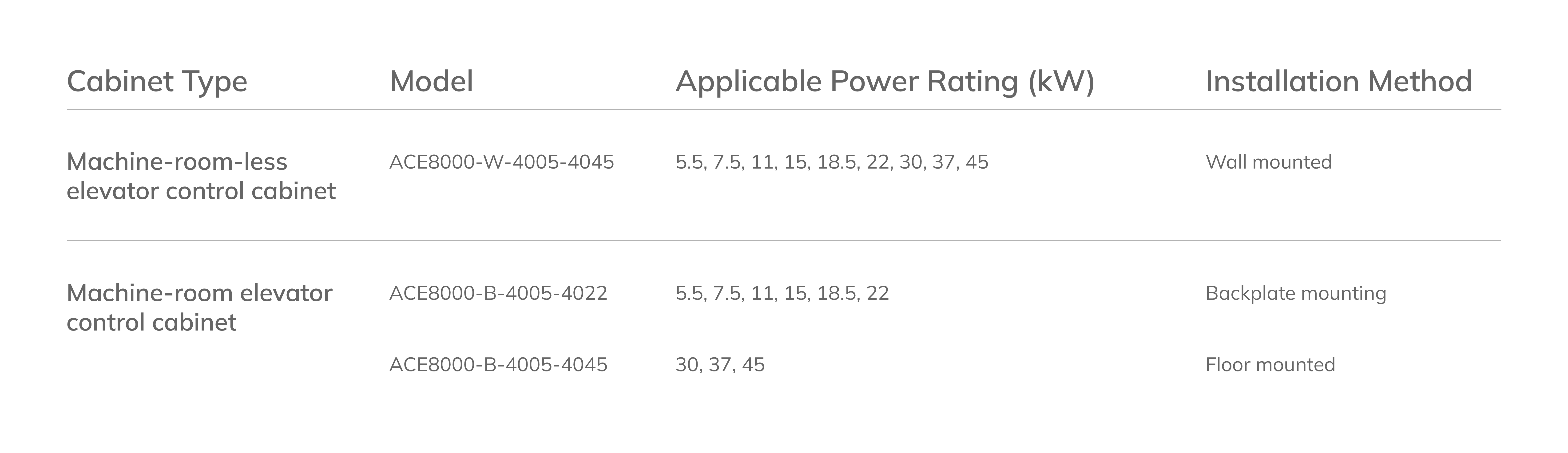

Technical specifications
