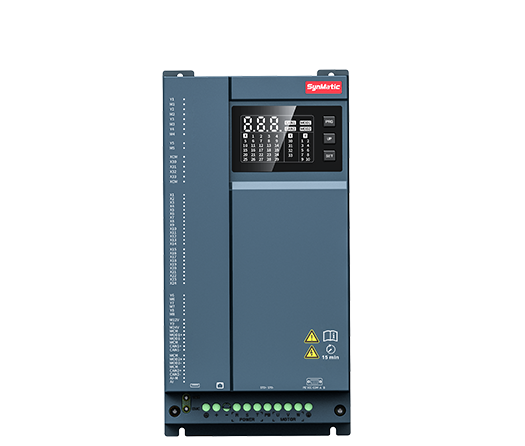

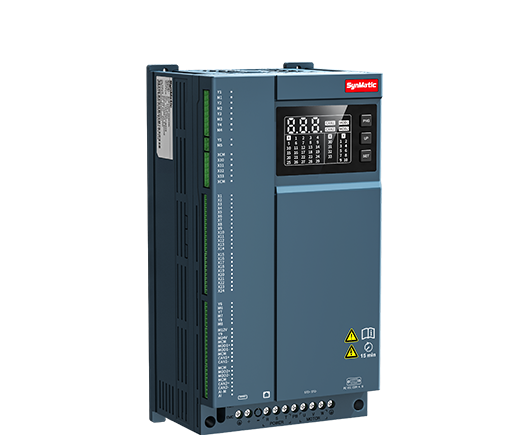

ACE8000

Integrated elevator controller

Meets new national standards and specifications, leading the future of elevator drive control systems.

The ACE8000 series redefines a model of integrated elevator controller. Combining elegant appearance and outstanding elevator drive control performance, this series provides higher power density, more friendly human-machine interaction, and higher control performance. These exquisitely crafted products meet new national standards and specifications, leading the future of elevator drive control systems.

Product Highlights

Lean integration

01

Lean integration

Redefined all-in-one device mode: Integrates the drive and controller into one unit to simplify the system structure and significantly enhance the product's integration level and compactness.

Enhanced protection standards: Ensures that the product meets protection requirements in the new national standard IPXXB to improve the device's anti-interference capability and operational safety, making it suitable for a wide range of industrial environments.

优化尺寸与布局:功率密度的大幅提升,结合巧妙的尺寸设计和灵活的出线方式,使得产品完美适配无机房控制柜布局,有效节省空间并提升整体美观度

Efficient interaction

02

Efficient interaction

Intuitive display interface: Provides a high-definition display screen to display the status information of input and output points in real time, making on-site troubleshooting easy and efficient.

Intelligent app commissioning: Supports CLI-based commissioning by using an app, allowing users to remotely monitor and commission the system. System status and abnormal causes are displayed in real-time pop-up windows, which greatly improves commissioning efficiency and convenience.

Precise drive control and functional safety

03

Precise drive control and functional safety

Adopts leading control algorithms and high-performance drive control chips to make control more precisely.

Supports a high-definition communication encoder to achieve higher resolution and more precise velocity measurement.

Replaces the RUN contactor with an STO module that features lower cost, smaller size, lower noise, and faster response.

Replaces the star sealing contactor with high-speed electronic start sealing at controllable current, without any harm to the host.

Technical Data

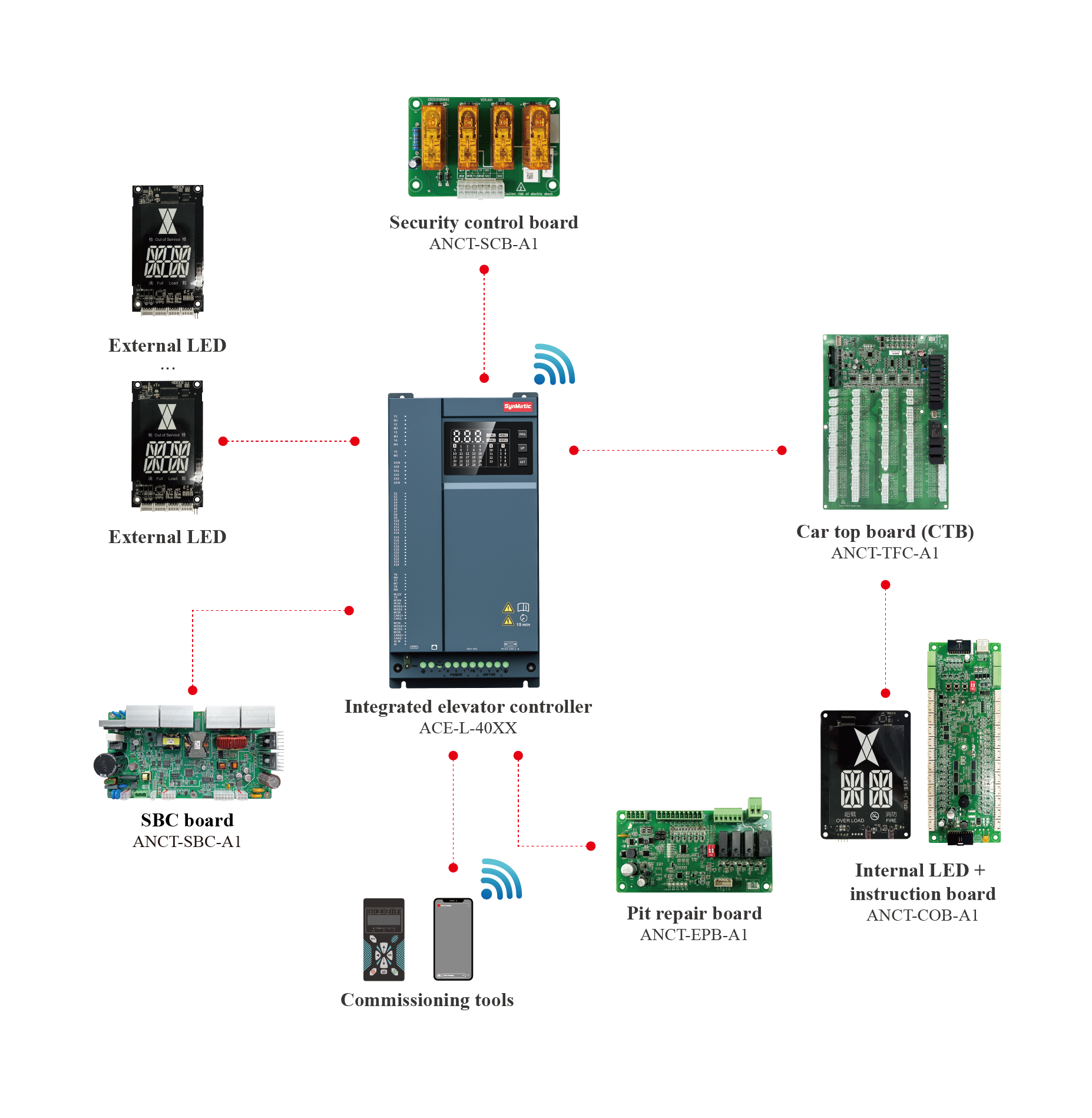

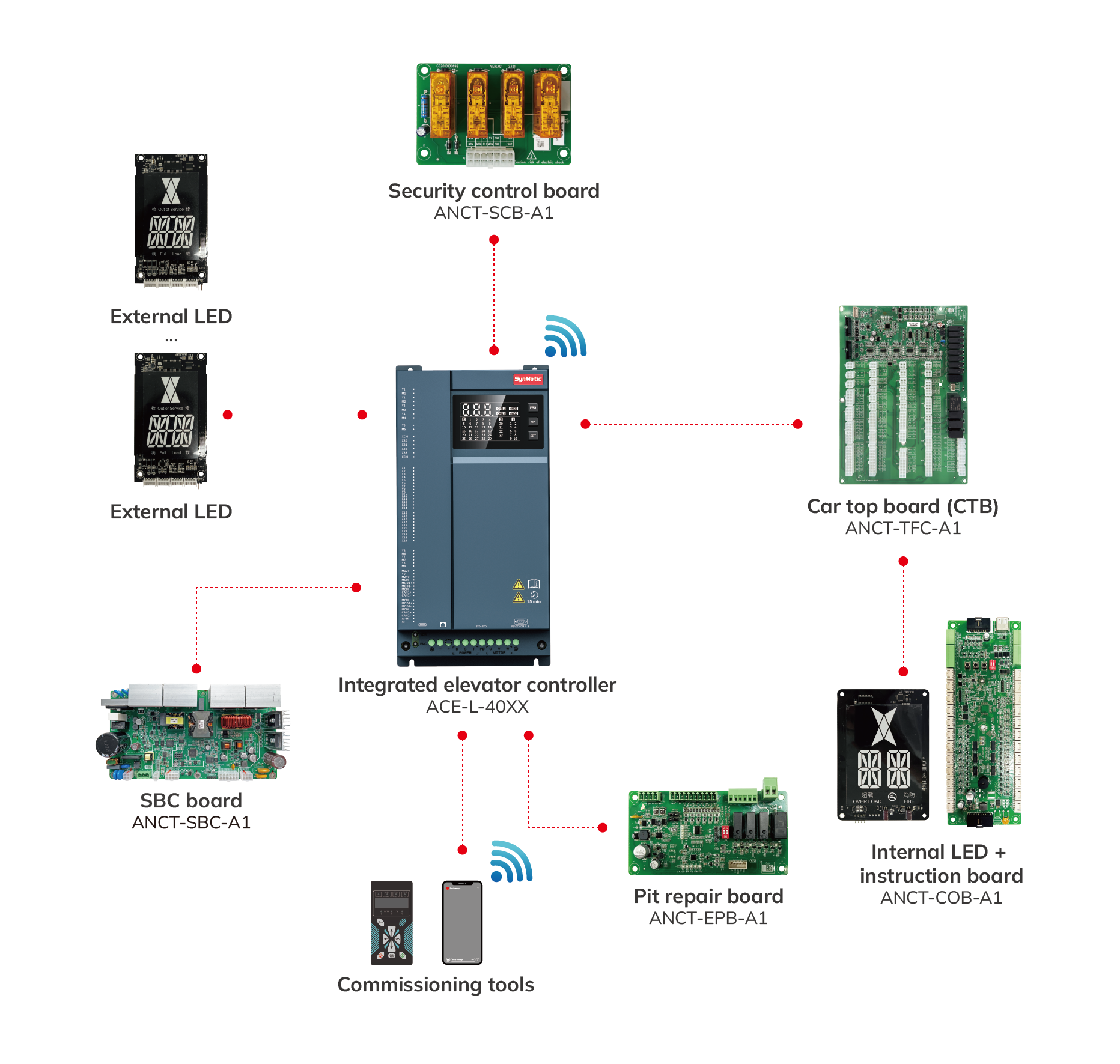

Solution topology


Technical specifications


Downloads

We are currently organizing the materials. Please stay tuned for updates!
